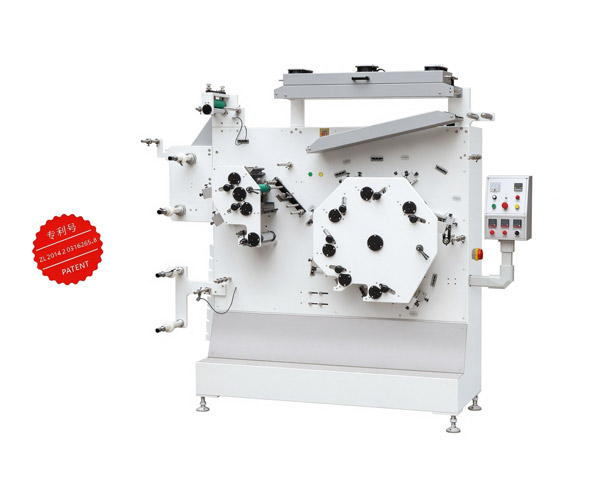

MHR-42S Type High-speed Flexo Label Printing Machine
MHR-42S Type  High-speed Flexo Label Printing Machine
详细介绍

Characteristics:

The type for current flexographic printing machine has carried on the comprehensive technical innovation, on behalf of flexographic printing machine development trend. The machine adopts machine, electricity, pneumatic integration, printing pressure is stable, accurate positioning and easy operation, machine is durable, safe and reliable. In printing process, no need stoping at any time when adjust the plate cylinder position, make every plate cylinder in correct overprint position, so improve the effect of printing, save printing consumables and adjust machine time for customer.

Advantages :

1. Color firmness, wash durable, non-fading, it can print various tape-type materials.
2. The gear plate cylinder can be freely exchanged to modify the printing length.
3. Its printing color is bright, firm and accurate registering.
4. It is characterized by ease, flexibility of operation, with sound reliable mechanic Performance.
5. It can print white characters in white ink on the black tape-type materials

Main Technical Variables:

Model
MHR21S
MHR31S
MHR42S
MHR62S
Front side printing
2colours
3colours
4colours
6colours
Back side printing
1colours
1colours
2colours
2colours
Max.Printing length
401mm
401mm
401mm
401mm
Min.Printinglength
108mm
108mm
108mm
106mm
Max.Printing width
150mm
150mm
150mm
150mm
Max. Printing speed
60m/min
60m/min
60m/min
60m/min
Feeder/Rewinder capacity
400mm
400mm
400mm
400mm
Power
220V/5.5kw
220V/5.5kw
220V/5.5kw
220V/5.5kw
Weight
560kg
700kg
800kg
950kg
Dimension(LxWxH)
1750*700*1820mm
2400*800*1870mm
2400*800*1870mm
2450*770*2150mm
